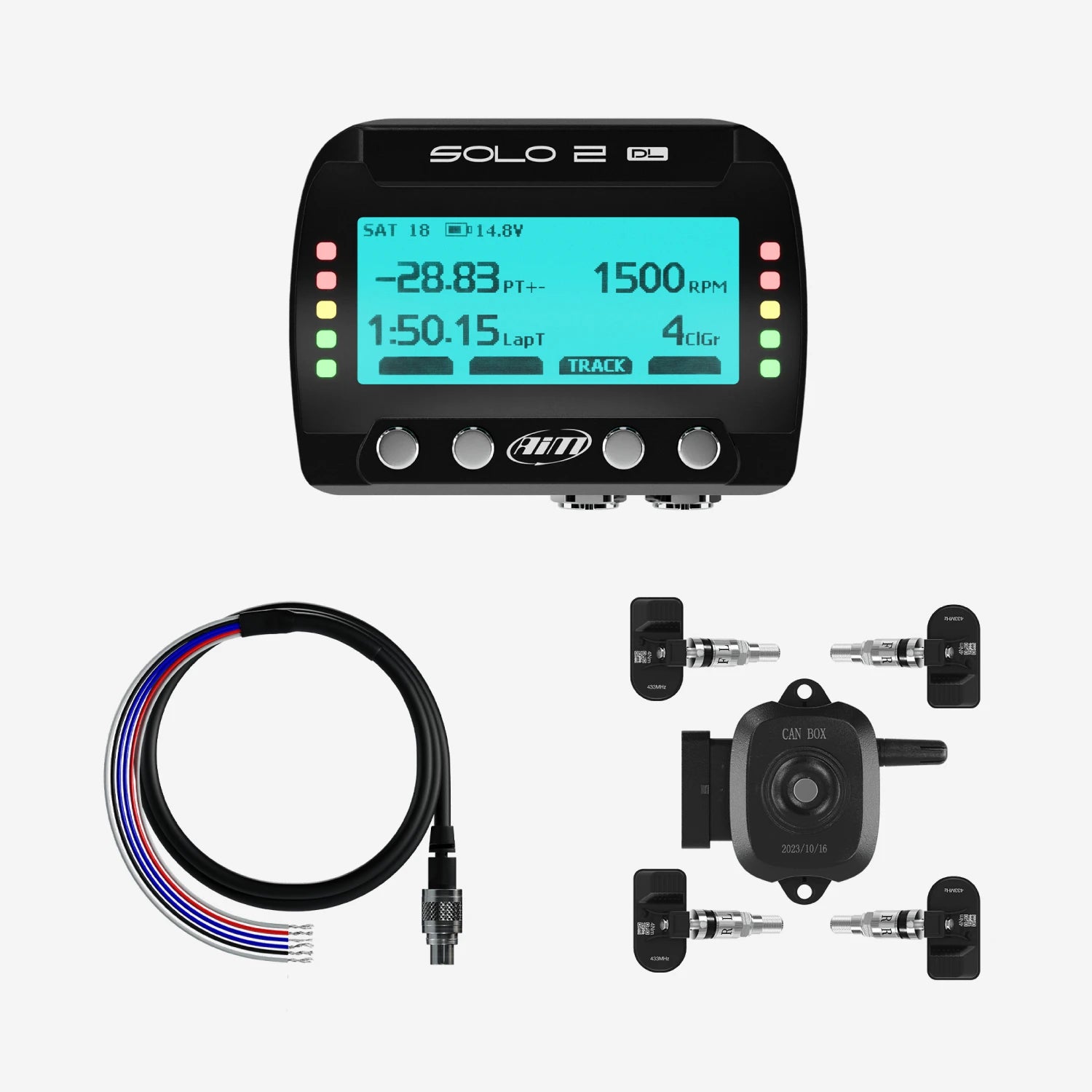

Tyre Pressure Monitoring System with Solo2 DL

Tyre Pressure Monitoring System & Solo2 DL to get the most precise lap times.

Key Features:

Wiring Harness	10 configurable RGB LEDs for simple Time +/- reference
Rechargeable Internal Battery	Multiple use Modes: Speed, Times & Performance
WIFI with Security for Downloading data	Internal 4 GB memory
Automatic GPS Lap Timer	Simple New open or Closed Track Creation
Configurable Delta and split times	Multiple & configurable Backlit Graphical Display
Database, with more than 4,000 tracks worldwide	Freely Configurable Display
Automatic Track Recognition and start / stop	FREE Race Studio 3 Download
Pre-assigned sensors	CAN Receiver
Light weight Sensors

The Solo2 DL with ECU Connection

Connecting to over a 1,000+ ECUs, we are sure it will work for you.

You can connect your Solo2 DL to the ECU, with a simple ODB11 plug or hardwired in, to providing you with all your car's information and power with just one cable.

Incase your ECU protocol is not in the database, no problem: with our ECU Driver Builder you can build your own its free in Race Studio 3 configuration software and you will be able to create your protocol on your own.

Coil RPM Input

Solo2 DL now also features a digital input, allowing you to log RPM either from square wave signals (8-50V each signal) or a pulse signals (150-450v) ignition coil trigger-primary circuit.

Multiple Configurations Management

Solo2 DL can receive up to 10 configurations at one time allowing you to switch among them through keys.

The Most Precise and Easy Way to get Lap Times

AiM Solo2 DL is the most precise GPS lap timer there is with the ability to show you your lap delta live as you drive... receiving data from two satellite constellations from any where on the globe by using GPS and Glonass, also giving you a significant improvement in data speed and positioning precision.

Powering on requires only a few seconds and lap times are calculated with a max 2/100 sec of tolerance.

Solo2 DL gives instant Speed, Timing, Splits live data and predictive lap times.

The Solo2 DL screen can be back lit in one of the seven available colours:

Predictive Lap Timer

The AiM Solo2 DL has 10 configurable RGB LEDs, and will give you a clear and fast indication of the comparison with your last lap. Predictive page: shows the predicted current lap time in the format you set.

+/- in relation to the Reference Lap Predicted Lap Time

You can custom build the layout of the display, to show the information you choose on 4 reconfigurable pages, your data shown in your way, see an example below.

Solo2 DL Data Recall Modes

Solo2 DL can manage two types of data or races:

In each of these configurations Solo2 DL gives the complete information during the test with the data ready to view on the Solo2 DL or Race Studio analysis software immediately after each race or test session.

Data Recall on Screen Data

At the end of your test you can quickly review all the key information on your display, RPM, Temps Times ECT.

SmartyCam HD or HD GP Connection

The perfect connection to get all your data from the ECU, merge them with the GPS information and transmit everything to the SmartyCam HD then watch the graphical overlay in the video.

Make it even better and add Multiple cameras to your Solo2 DL!!!

Wi-Fi Communication with the PC

With wifi connectivity you can transfer your data securely and quickly to your laptop or computer without cables.

Solo 2 DL New Track Creation and our Track Database

Solo2 DL allows you to simply create a new temporary or permanent track layout, whether its a point to point run for rallying, or a closed loop track, it can simply be added to the Solo2 DL and PC database.

Simply put if there is no track already the Solo2 DL will create a new one...

With over 4000 tracks pre-loaded from around the world. As soon as its switched on the Solo2 DL identifies its position then once you start to drive it automatically recognises the start line coordinates of the track and will start sampling lap times, every time you go past.

If the tracks not loaded in the database Solo 2 DL will switch to learning mode automatically and will understand the characteristics of the track and give you your lap time.

Tyre Pressure Monitoring System.

The AiM tyre pressure monitoring system kit comes with a wiring harness four, eight or twelve sensors and a CAN receiver which is compatible for race car applications and competitions. The receiver utilises 1Mbit CAN (11bit) which has become the standard over the years for most professional ECUs, data loggers and dashboards within the motorsport and automotive sectors.

The receiver is pre-coded with 4 sensors which it will use.

Each sensor is labelled FR, FL, RR, RL for each of the wheels of the car.

Extra wheels can be clone coded that can then be used as sets of spares for pit changes.

The wire colour codes are:

+12V - Red
Ground - Black
CAN+ - Green
CAN- - White

Sensors

The AiM TPMS sensors are already clone coded FR, FL, RR, RL so all you need to do is connect your sensors to the correct tyre and all the data will be recorded on the receiver and then overlay on to your dash logger.

You can add as many sensors as you like, you will need to clone a sensor using the handheld reader.

Please Note: Should you require to purchase extra sensors you will need to purchase the Handheld programming unit in order to be able to manually programme the sensors.

Not Enough

You can add a Handheld Reader / Programmer.

The handheld reader can read each wheel individually, It reads by close proximity whereas the CAN receiver uses a radio link to the sensors with the address of each sensor pre-defined as to which wheel is being measured.

TPMS Connections

The AiM Tyre Pressure Monitoring System can be used with all of our dash display loggers (except Solo2). You can add a 4x CAN connection multiplier and a GPS module or our SmartyCam cameras to your system. See diagram below:

Unlock your potential

Our mission is to help educate you and enable you to get the most out of your AiM data equipment… whether you are new to racing or a seasoned professional, there is always something new to learn.

Technical Specifications

Display: Graphical
Display Resolution: 238x99 pixels
Display Pages: Up to 8 freely configurable
Back Light: 7 configurable RGB colours
Shift Lights/alarm LEDs: 10 configurable RGB LEDs
Integrated Track Database: Yes
Inertial Platform: Internal 3 axis ±5G accelerometer + 3 axis gyro + 3 axis magnetometer
Wi-Fi Connection: Yes
GPS: 10 Hz External power: 12 V
Memory: 4 GB
Battery Type: Rechargeable Lithium
Pushbuttons: Metallic
Dimensions: 98.0x73.7x30.2 mm
Weight: 240 g, battery included
Waterproof: IP65
ECU Connection: CAN,RS232 or K-Line to 1,000 + industry leading ECUs
Multiple Configuration Management: Yes

Sensor

Range: 0.8000mbar
Modulation Mode: FSK
Temperature Measurement Range: -40° - 125°
Temperature Resolution: 1°
Sealing: IP67
Battery Lifespan: Equal to 2 race seasons
RF Frequency: 433MHz
High Power Emission Power: <8dbm

CAN bus Receiver

Baud Rate: 1000kbps
DC: 12V-24V
Pressure accuracy +/-20 mbar
Connection output for CAN 2.0 1Mbps 11 bit

Whats in The Box

Aim Solo 2 DL
Power Cable with AC adapter
Mounting Bracket with screws
Aim Sticker

Cable:

CAN/RS232 external power cable

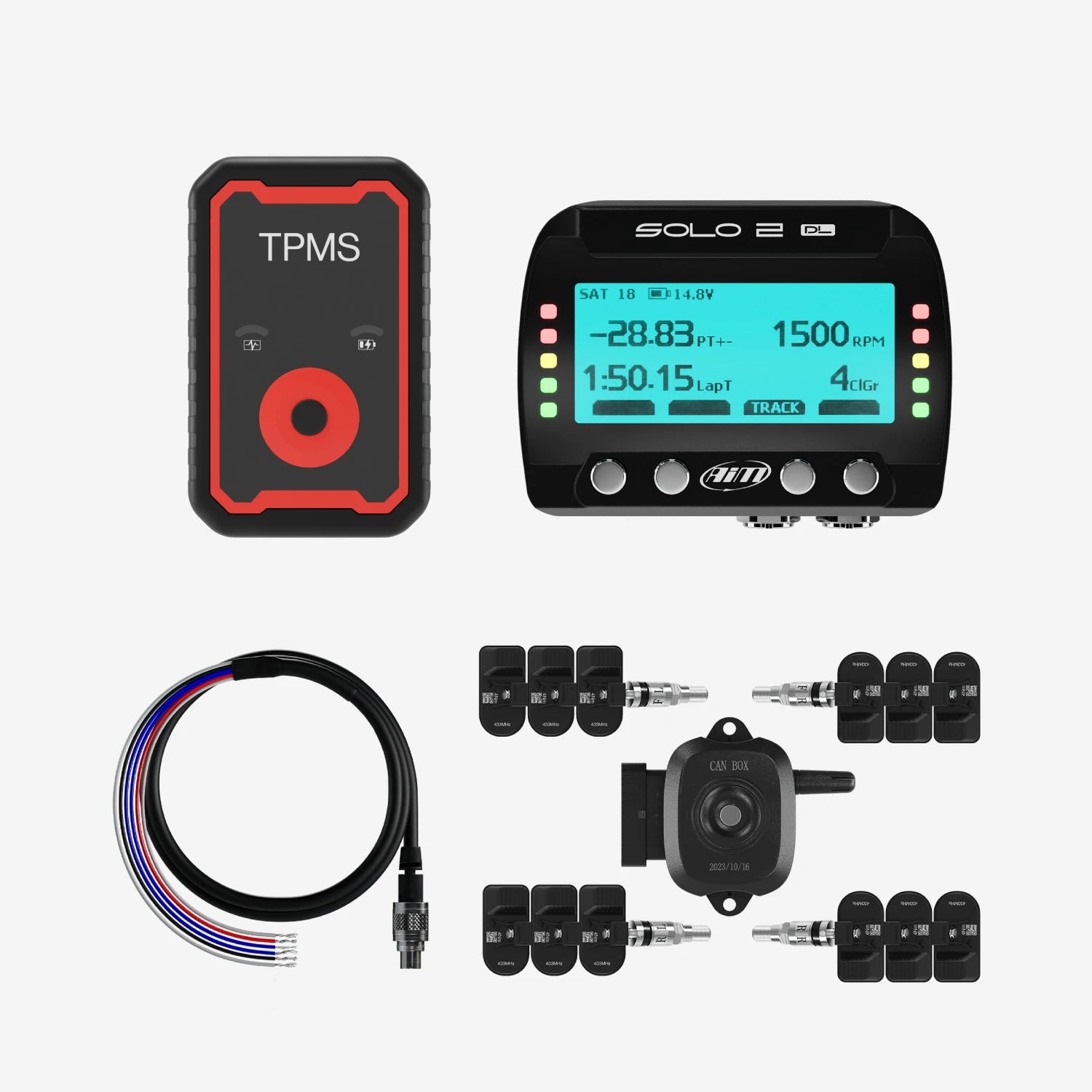

TPMS

1 - CAN Receiver
1 - Wiring Harness
4, 8, 12 - Wheel Sensors depending on what you want

Downloads


User Guide	Technical sheet	Race Studio 3	TPMS CAN Protocol
