The Most Precise & Easy Way To Get Lap Times

Upgrade your offroad motocross setup with one of the best motorsport lap timers in the industry — the Solo 2 DL GPS Lap Timer. Equipped with a 25 Hz GPS, ECU connection, built-in gyro, user-friendly interface and compatibility with session performance analysis software, the Solo 2 DL provides precise lap times and detailed telemetry for amateur and professional riders to optimise their performance and achieve their track day goals.

Solo 2 DL Key Features

Direct ECU Data Logging

Predictive Lap Timing

Extensive Track Database

8 Different Colour Backlights

10 Configurable RGB LEDs

Choice Of Connection

Multiple Race Modes: Speed, Times & Performance

Integrated GPS & GLONASS Receiver

8 Configurable Display Pages

Automatic Track Recognition

Internal 4GB Memory

Wi-Fi Connection

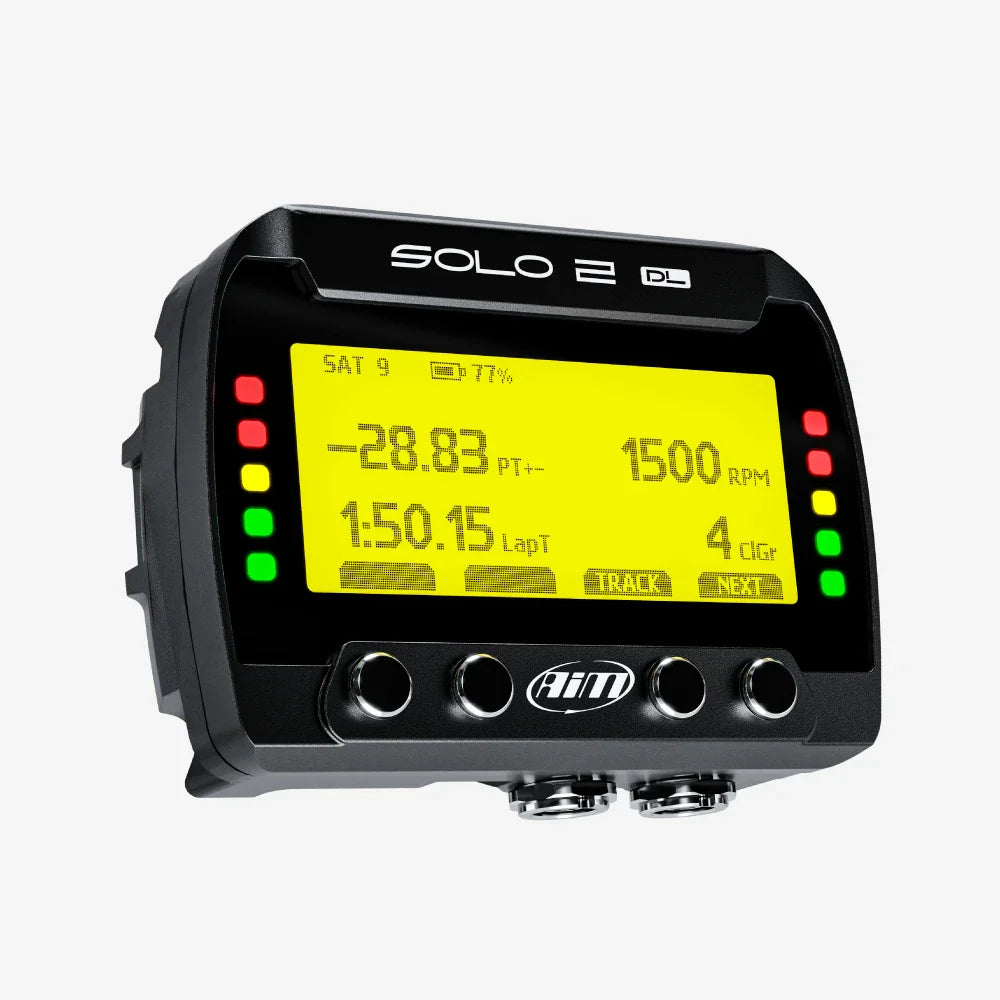

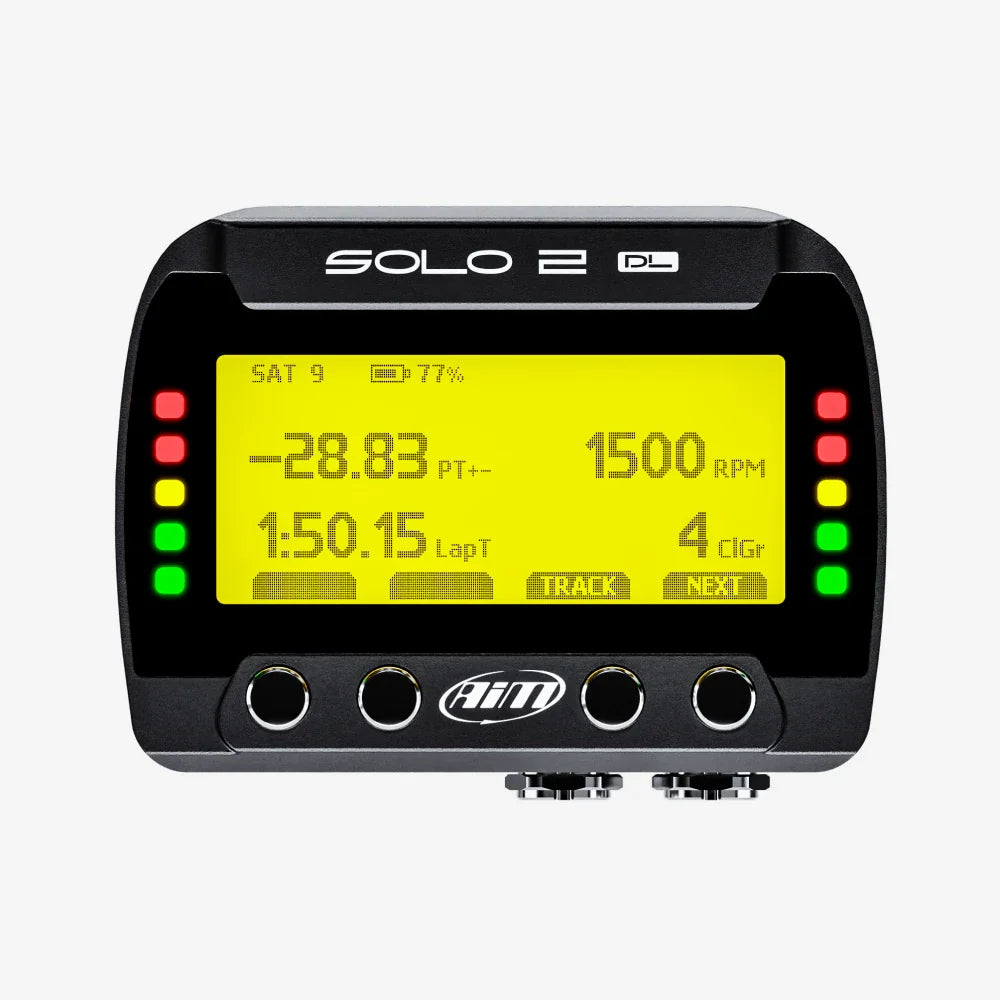

Solo 2 DL Offroad Motocross Track Day Lap Timer

Solo 2 DL With ECU Connection

Aim Solo 2 DL is the most precise GPS lap timer with the ability to show lap times live as you drive due to data from two satellite constellations from anywhere globally by using GPS and Glonass, which ultimately gives a significant improvement in data speed and positioning precision.

Start up time is reduced to seconds and lap times are accurate to a tolerance of two-hundredths of a second.

Easy Connection

The Solo 2 DL can be connected to the motocross bike's ECU to obtain various data from the sensors you have fitted to your bike. Solo 2 DL manages all the hardware ECU connections and all the communication lines: depending on whether you want to connect to the ECU using the OBDII port or directly to the ECU through the CAN/RS232 channel. If the ECU protocol is not supported, the connection to the Solo 2 DL to a coil RPM will provide a digital input delivered from square wave signals or pulse signals.

The sampled data you record depends on the actual ECU, typically includes RPM, engine load, throttle position (TPS), oil, air, water temperature, oil pressure, battery voltage, speed, gear and lambda value (air/fuel). The list of ECUs is constantly updated.

Add a SmartyCam HD/GP HD camera to create an even mightier system to help provide you with incredible videos that include all the technical information to help improve your performance.

Solo 2 DL gives instant speed; timing splits live data and predictive lap times.The Solo 2 DL has a sharp, high contrast display which helps drivers easily identify the data displayed on the screen. The Solo 2 DL also features a selection of 7 different backlight colours, which you can select to suit your requirements.

Predictive Lap Timer

The GPS technology provides better reliability from the predictive lap timing function, so you can see in real-time how your current lap compares to your best lap. The LEDs are also configurable to give a visual indication of whether you are quicker or slower. You can also build the layout of the display to show the data you want to see.

Data Recall On Screen

Solo 2 DL can be used for circuit racing and point to point or regularity events and performance tests such as 0-60mph. And just like the circuit racing mode, all the data is recorded and can be reviewed immediately after each race or test session.

Solo 2 DL New Track Creation And Our Track Database

Solo 2 DL allows you to create a new temporary or permanent track layout. Whether it's a point to point run for rallying or a closed-loop track.

With over 4000 tracks pre-loaded from around the world. As soon as it's switched on, the Solo 2 DL identifies its position. If the track is not one of the pre-loaded, Solo 2 will create a new one for you, and once you start to drive, it automatically recognises the start line coordinates of the track and starts sampling lap times every time you go past.

Wi Fi Communication With The PC

The Solo 2 DL has integrated Wi Fi. If you want to review your data in more depth, transfer your data securely and quickly onto a laptop or computer up to 50m away without the need for connectors and cables. You can then import the data into the Race Studio 3 software.

Compatible Expansions

Add SmartyCams and a Lambda Control Unit to increase your data performance.

Configure & Analyse with Race Studio 3

Configuration

With Race Studio 3, you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You can also manage the map of all your racing tracks and compare two laps by watching the video recorded by SmartyCam HD cameras.

Analysis

With Race Studio 3, you can also analyse all data recorded by Solo 2 DL and download it to your PC: graphs, histograms and tables will help you study your performance, providing objective support to avoid mistakes and improve race times.

Technical

Aim Solo 2 DL Lap Timer GPS + ECU Offroad Racing Dash Logger

Display: Graphical
Display Resolution : 238 x 99 pixels
Display Pages: Up to 8 freely configurable
Backlight: 8 configurable RGB colours
Shift lights/alarm LEDs : 10 configurable RGB LEDs
Integrated track database: Yes
Inertial platform : Internal 3 axis +5G accelerometer + 3 axis gyro
Wi-Fi connection: Yes
GPS: 25 Hz
ECU connection: CAN, RS232 or K-Line to thousands of industry-leading ECUs
External power: 12 V
Connectors: 1 socket (binder) 712, 5 pins, 1 socket (binder) 712, 8 pins
Memory: 4 GB
Battery type: Rechargeable Lithium
Pushbuttons: Metallic
Dimensions: 98.0 x 73.7 x 30.2mm
Weight: 240g, battery included
Waterproof: IP67

Solo 2 DL Pinout

TM Racing Pinout

TM Racing Pinout

GET GP1 & GET Power Pinout

TM Racing Pinout

Suzuki pinout

Suzuki pinout

Microtec M222 pinout

Microtec M222 pinout

Microtec M206 pinout

Microtec M206 pinout

Honda pinout

Honda pinout

What's In The Box

Aim Solo 2 DL Lap Timer GPS + ECU Offroad Racing Dash Logger

Solo 2 DL
Power cable with AC adapter
Mounting bracket with screws
User manual
Aim Sticker
Choice of power leads available as selected at checkout. Only One Supplied
CAN/K-Line external power cable with OBDII connector
CAN/RS232 external power cable
RPM external power cable (if your vehicle has no ECU)

Downloads


User Guide	Technical sheet	Race Studio 3
