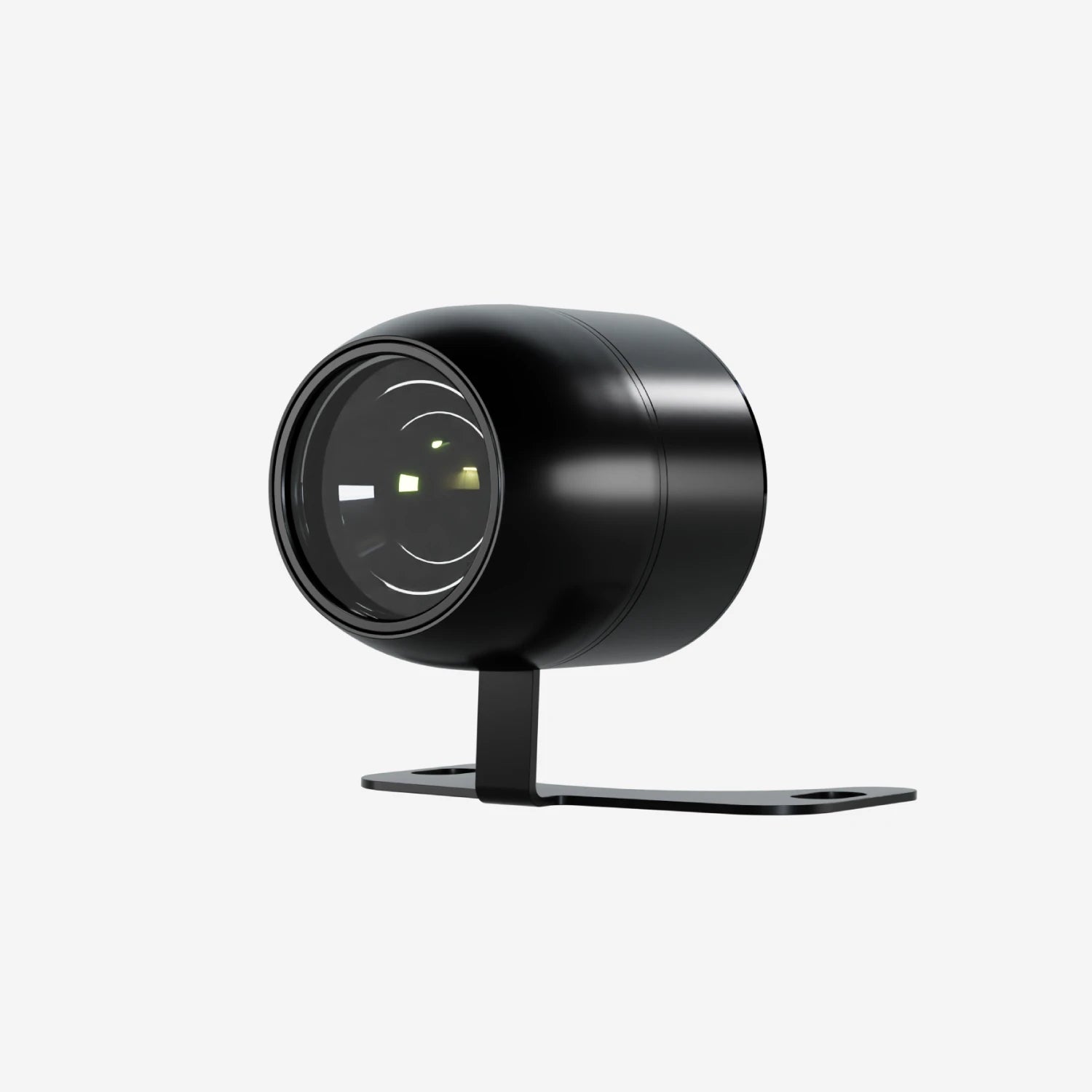

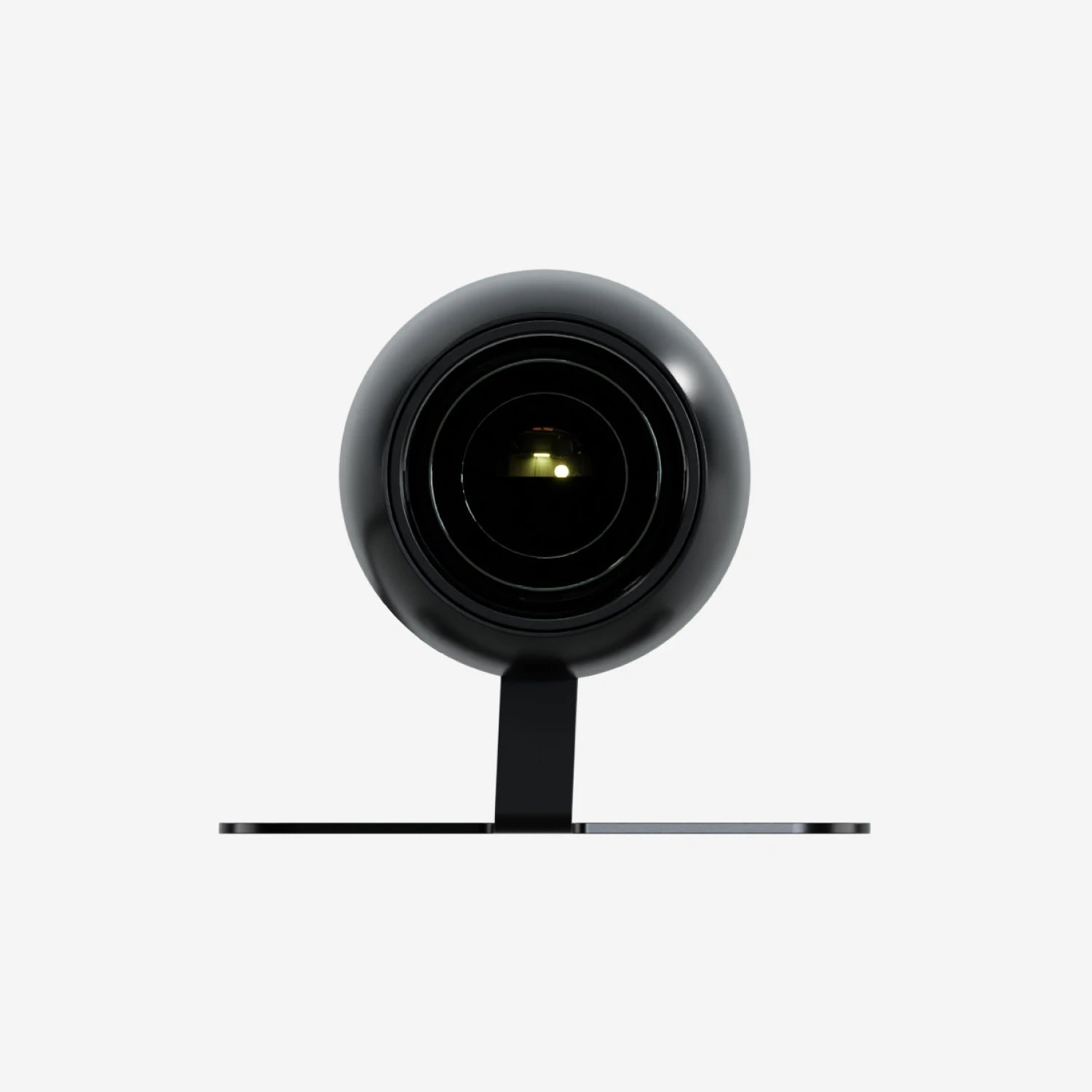

AiM Mirror & Reversing Camera for MX Series & PDM

Our AiM innovative camera will turn your dash display/dash logger into a rear view mirror or reversing camera. Ideal for sports or race cars with limited view.

Key Features :

Ideal for vehicles with limited view	Suitable for MX Series and PDM
5 pin male binder connection	Park overlay function

Mirror/Reversing Camera

This camera fits the AiM MX Series dash displays and loggers and our PDM with mirror camera input port.

Plug & play connection via patch lead, these are available in the options. Up to two cameras can be connected to any MX Series dash display/ dash logger to show different perspectives. A park overlay function can be activated for an additional aid when tour reverse parking.

The camera is supplied with a short lead so a patch lead is usually required for installation.

The patch cables are available in two different options: Single patch cable for connecting 1 x AiM reversing mirror camera. Double patch cable for connecting 2 x AiM reversing mirror cameras.

Please Note: Long lead length for running from the front to the back of the car - AiM patch cable are 6m in length.

The camera is supplied with a base mount bracket for mounting to a flat surface. Mounting through a panel is also possible and a correct sixed hole is provided to faciliatae this.

Expand Your System

These are some of the items that can be added to your car for incrementing performance and data.

Technical

AiM Mirror & Reversing Camera for MX Series & PDM

Optical Format: 1/4 inch colour CMOS
TV System: NTSC
H-FOV: 170°
Pixel Array: 648 (H) x 488 (V)
Frame Rate: 60 fps
Temperature: -30/80°C
See the Technical Sheet in the Downloads Tab for the different patch cable drawings.

Aim Mirror Reversing Camera For MX Series and PDM Technical Pinout

Aim Mirror Reversing Camera For MX Series and PDM Connection

What's in The Box

AiM Mirror & Reversing Camera for MX Series & PDM

One mirror/reversing camera - Patch cables are sold separately
Flush Mount kit - Drill bit & Flush mount
Swan Neck kit - Rubber pad, Screws & Bracket
